Runtime Reconfiguration Pattern


Context and Problem



A primary aim for important applications such as commercial and business websites is to minimize downtime and the consequent interruption to customers and users. However, at times it is necessary to reconfigure the application to change specific behavior or settings while it is deployed and in use. Therefore, it is an advantage for the application to be designed in such a way as to allow these configuration changes to be applied while it is running, and for the components of the application to detect the changes and apply them as soon as possible.


Examples of the kinds of configuration changes to be applied might be adjusting the granularity of logging to assist in debugging a problem with the application, swapping connection strings to use a different data store, or turning on or off specific sections or functionality of the application.




The solution for implementing this pattern depends on the features available in the application hosting environment. Typically, the application code will respond to one or more events that are raised by the hosting infrastructure when it detects a change to the application configuration. This is usually the result of uploading a new configuration file, or in response to changes in the configuration through the administration portal or by accessing an API.


Code that handles the configuration change events can examine the changes and apply them to the components of the application. It is necessary for these components to detect and react to the changes, and so the values they use will usually be exposed as writable properties or methods that the code in the event handler can set to new values or execute. From this point, the components should use the new values so that the required changes to the application behavior occur.


If it is not possible for the components to apply the changes at runtime, it will be necessary to restart the application so that these changes are applied when the application starts up again. In some hosting environments it may be possible to detect these types of changes, and indicate to the environment that the application must be restarted. In other cases it may be necessary to implement code that analyses the setting changes and forces an application restart when necessary.


Below is an overview of this pattern.

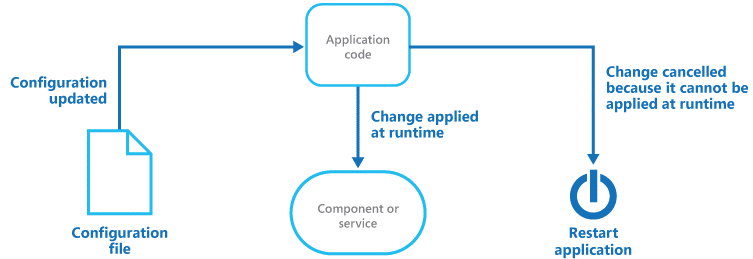

A basic overview of this pattern


Most environments expose events raised in response to configuration changes. In those that do not, a polling mechanism that regularly checks for changes to the configuration and applies these changes will be necessary. It may also be necessary to restart the application if the changes cannot be applied at runtime. For example, it may be possible to compare the date and time of a configuration file at preset intervals, and run code to apply the changes when a newer version is found. Another approach would be to incorporate a control in the administration UI of the application, or expose a secured endpoint that can be accessed from outside the application, that executes code that reads and applies the updated configuration.


Alternatively, the application could react to some other change in the environment. For example, occurrences of a specific runtime error might change the logging configuration to automatically collect additional information, or the code could use the current date to read and apply a theme that reflects the season or a special event.


When to Use this Pattern


This pattern is ideally suited for:


  • Applications for which you must avoid all unnecessary downtime, while still being able to apply changes to the application configuration.
  • Environments that expose events raised automatically when the main configuration changes. Typically this is when a new configuration file is detected, or when changes are made to an existing configuration file.
  • Applications where the configuration changes often and the changes can be applied to components without requiring the application to be restarted, or without requiring the hosting server to be rebooted.

This pattern might not be suitable if the runtime components are designed so they can be configured only at initialization time, and the effort of updating those components cannot be justified in comparison to restarting the application and enduring a short downtime.
